The URPD (UTXO Realized Price Distribution) metric provides unprecedented insight into Bitcoin's on-chain behavior by analyzing the price distribution of unspent transaction outputs. This technical deep-dive explores the complete process of creating interactive URPD visualizations, from parsing raw blockchain data to generating dynamic time-series analysis.
See the interactive URPD explorer to explore URPD through time.
URPD Over Time
Dynamic time-series demonstration showing URPD evolution during major market events

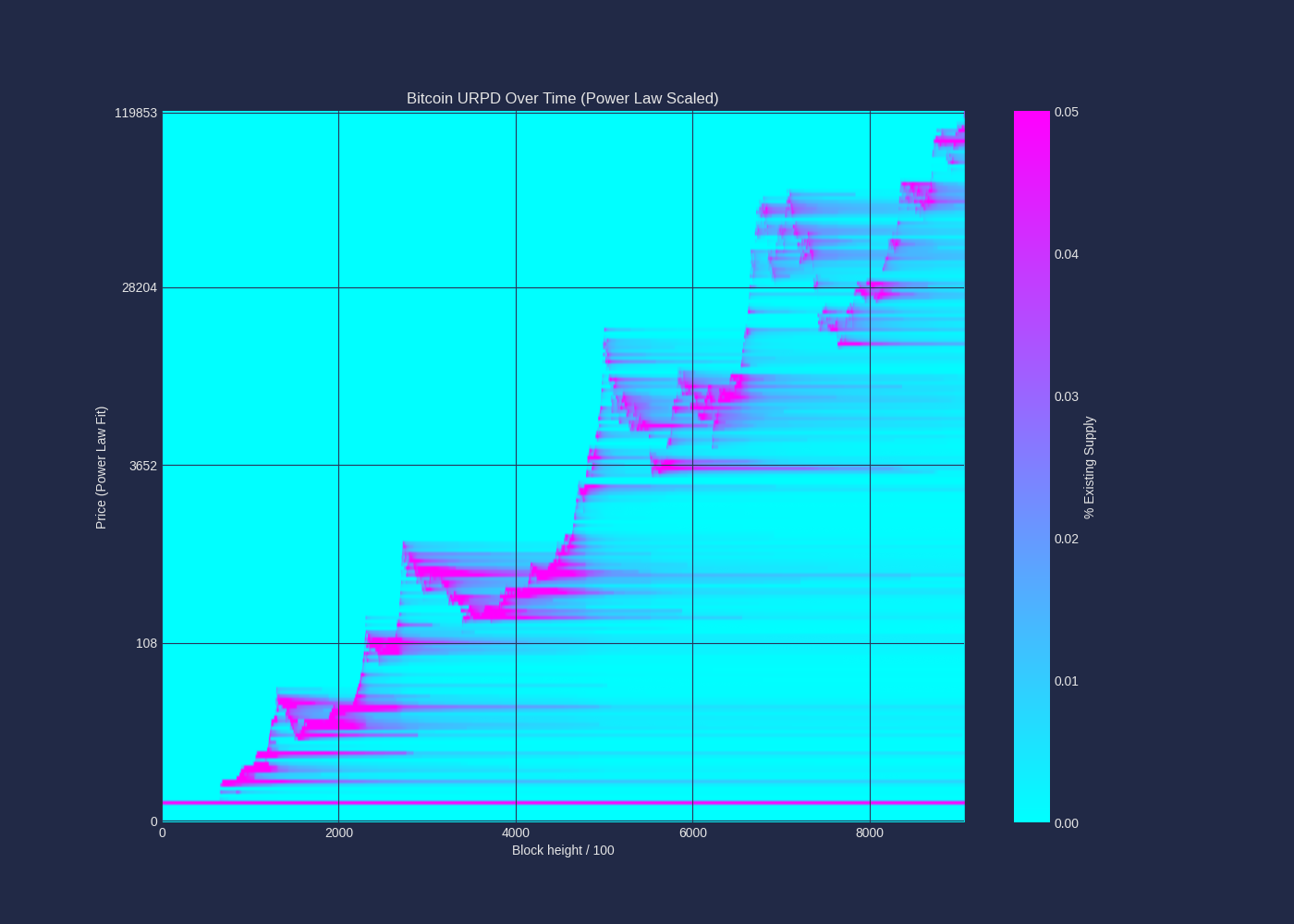

URPD Heatmap (Power Law Scaled)
Historical heatmap visualization showing URPD patterns across multiple market cycles
📷 Click to zoom
Technical Implementation Overview
Creating a comprehensive URPD visualization requires processing Bitcoin's entire transaction history and correlating it with historical price data. The implementation involves three main phases: data extraction and storage, URHD derivation, and price mapping to generate the final URPD metric.
1Raw Block Data Processing & Database Creation
The foundation of URPD analysis begins with parsing Bitcoin's raw block data to extract and index every transaction. This process creates a high-performance, sharded key-value database optimized for multiprocessed reading operations.
Database Architecture
The database uses a sharded architecture where each shard contains a subset of transactions, enabling parallel processing across multiple CPU cores. Each transaction entry follows the structure:
Implementation Details
- Block Parsing: Sequential processing of Bitcoin blocks from genesis to current tip
- Transaction Extraction: Parse each transaction within blocks to extract output data and block height
- Sharding Strategy: Distribute transactions across shards (multiple LevelDB databases) using pre-hashed transaction ID for fast and distributed future access
2URHD (UTXO Realized Height Distribution) Derivation
URHD derivation processes every transaction input across Bitcoin's blockchain history. Starting with an empty distribution, we iterate through each block, transaction, and input. For each input, we retrieve its creation height, add its volume to a copy of the previous height's URHD, and subtract it from the copy at its creation height. We then update the URHD with the modified copy. This creates a time-series showing how unspent outputs migrate between height distributions as Bitcoin moves through the network.
URHD Process Steps
The algorithm processes blockchain data block-by-block with the following sequential operations:
- Initialization: Start with empty URHD at genesis (height 0)
- Block Iteration: Process each Bitcoin block sequentially from genesis to tip
- URHD Copy Creation: For each block, create a working copy of the previous block's URHD
- Sharded DB Access: Utilize the sharded transaction database for fast multiprocessed reading of input creation heights
- Input Processing: For each transaction input in the block, retrieve its creation height from the sharded database
- Volume Operations: Add input volume to current height and subtract from its original creation height in the URHD copy
- URHD Update: Store the modified URHD copy as the final distribution for the current block height
Data Structure
3URHD to URPD Conversion Using Historical Price Data
The final phase converts the height-based URHD into a price-based URPD by mapping creation block heights with historical Bitcoin prices. This transformation reveals the price distribution of the current and historical UTXO sets.
Price Data Integration
- Price Source: High-quality historical Bitcoin price data with daily granularity
- Height-to-Timestamp Mapping: Convert block heights to timestamps using block headers
- Temporal Alignment: Match UTXO creation times with corresponding market prices
- Price Bucketing: Group UTXOs into price ranges for visualization purposes
Calculation Process
The Strategic Importance of URPD Analysis
URPD provides unique insights into market behavior by revealing the price basis of current Bitcoin holders. Unlike traditional technical analysis that focuses on price and volume, URPD exposes the underlying economic incentives driving market participants.
🎯 Market Sentiment Analysis
URPD reveals the profit/loss distribution of current holders, providing early indicators of potential selling pressure or accumulation behavior. Large concentrations of UTXOs at specific price levels often indicate strong support or resistance zones.
📈 Liquidity Assessment
By analyzing the volume and age distribution within price ranges, traders can assess potential liquidity at different price levels. This information is crucial for large-scale trading strategies and market impact analysis.
🔄 Cycle Identification
URPD patterns often precede major market movements. For example, thin accumulation zones with a rapid increase in price are often followed by a market sell-off.
⚡ Network Health Monitoring
Long-term URPD trends indicate network maturity and adoption patterns. A healthy distribution typically shows gradual migration of UTXOs to higher price levels, reflecting sustained network growth and value appreciation. Bitcoin's URPD over time demonstrates this trend clearly, and might be used as a benchmark when comparing other UTXO-based cryptocurrencies.
🏛️ Institutional Analysis
Large institutions and long-term holders create distinct URPD signatures. Identifying these patterns helps distinguish between retail and institutional behavior, crucial for understanding market dynamics and predicting institutional flows.
Advanced Applications & Future Development
Actor Tracking
Currently, we assume that the cost basis of each UTXO is the price at which it was created. Future work will involve tracking actor behavior and classifying change addresses from output addresses in attempt to achieve a more accurate cost basis.
Multi-Asset URPD Analysis
Extending the methodology to other UTXO-based cryptocurrencies (Bitcoin Cash, Litecoin, Kaspa) enables comparative analysis and cross-asset arbitrage opportunities. Each blockchain's unique characteristics require adapted processing strategies.
Machine Learning Integration
URPD time-series data provides rich features for machine learning models predicting price movements, volatility, and market regime changes. The high-dimensional nature of URPD data requires specialized feature engineering and model architectures.
Technical Challenges & Solutions
Scalability Considerations
Processing Bitcoin's complete history requires handling over 700GB of block data and billions of transactions. Our sharded database approach with optimized data structures enables processing on consumer hardware while maintaining accuracy.
Visualization Performance
Interactive visualization of high-dimensional time-series data presents unique challenges. We employ data aggregation, progressive loading, and accelerated rendering to deliver smooth user experiences even with massive datasets.
URPD analysis represents a significant advancement in on-chain analytics, providing unprecedented insight into Bitcoin's market dynamics. By combining rigorous data engineering with innovative visualization techniques, we can now observe and quantify behavioral patterns that were previously invisible to traditional analysis methods.
